CERES^®Products

Three models, one platform: all controlled over Wi-Fi from a tablet, phone or computer, right in the browser.

CERES^® 800V

Vertical electrical sounding

Developed for vertical electrical sounding (VES). Start scheme-based or free-form sessions and watch the VES curve live while you measure; take a measurement with one button and download the data. The instrument is controlled over Wi-Fi; there is no app to install.

Developed for vertical electrical sounding (VES)
Scheme-based and free-form measurement, session management
Live display of the VES curve
One-button measurement and data export
Control over Wi-Fi

Ask for info & a quote Full specifications

CERES 800V · VES measurement

VES measurement screen in the CERES interface

Application	Vertical electrical sounding (VES)
Measurement	Scheme-based and free-form, session management
Live display	VES curve, table, instant values
Data	One-button measurement; data download
Control	Over Wi-Fi from tablet, phone or computer
Interface	Web-based, Turkish / English
Other values	On request

CERES^® 800M

Multi-electrode · tomography

For multi-electrode ERT (2D tomography); the same unit also performs VES. It offers smart data-quality control and real-time pseudosection display; cables are 8-outlet reels and scale to up to 256 electrodes in effective use. The instrument is controlled over Wi-Fi.

2D tomographic apparent resistivity measurement
Smart data-quality control algorithm
Real-time pseudosection display
Wenner, Schlumberger, Dipole-Dipole, Pole-Dipole, Pole-Pole, Gradient
Control over Wi-Fi

Ask for info & a quote Full specifications

CERES 800M · instrument

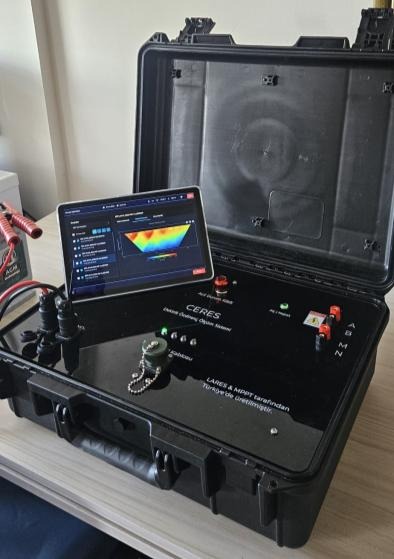

CERES instrument: open case, tablet and connection terminals

Application	ERT (tomography) and VES
Output power	800 W
Output current	5 – 2000 mA, user- or system-adjustable
Output voltage	1600 V (p-p)
Receiver	24 bit / 1 µV; input ±20 V; 20 kS/s
Stacking	S/N-controlled automatic or user-defined (1–8)
Arrays	Wenner, Schlumberger, Dipole-Dipole, Pole-Dipole, Pole-Pole, Gradient, custom
Cable	8-outlet reels, PUR; 1, 5, 10 m (custom spacing on request)
Electrode count	Up to 256 in effective use
Display / control	11″ tablet; remote over Wi-Fi
Memory	16 GB built-in; 128 GB on the tablet
Size / weight	49 × 39 × 19 cm; 8.3 kg
Power supply	12 V / 60 Ah battery; reverse-polarity protected
Warranty	2 years

CERES^® 800W

Induced polarization · IP

For induced-polarization (IP) surveys; collects data with wireless remote receivers and is aimed at mineral and raw-material exploration. The instrument is controlled over Wi-Fi.

IP measurement system with wireless remote receivers
Aimed at mineral and raw-material exploration
Wireless data collection via remote receivers
Control over Wi-Fi
Contact us for information and pricing

Ask for info & a quote Full specifications

CERES 800W

Application	Induced polarization (IP)
Focus	Mineral and raw-material exploration
Data collection	Wireless remote receivers
Control	Over Wi-Fi from tablet, phone or computer
Specifications	On request

Let us pick the right model together

Tell us your application; we will reply with a model, cable and accessory recommendation.
